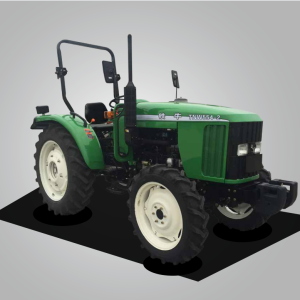

TNC454-1~TNC604-1 Tractor Agricultural Machinery Farm Equipment Tractor

Categories	30-150HP tractor
Model	TNC454-1~TNC604-1
GREEN	DARK GREEN
IRONMAKE	FOUR WHEEL
SMALL HORSEPOWER	MEDIUM HORSEPOWER
BRANBD	Arable Bull/OEM
FOB port	tIANJIN PORT
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

Features of TNC Tractor Series

·This series of tractors covers seven main engine models of 65, 75, 80, 85, 90, 95 and 100 horsepower, and there are various configuration models to choose from. Standard 12 forward gears and 6 reverse gears, transmission case

And the power output adopts the gear shifting of the meshing sleeve, and the gear can be shifted smoothly without stopping, and the operation is lighter and faster. It can meet various complex agronomic requirements, and there are more optional agricultural machines, which have better farming performance.

effects and higher economic benefits.

·With a safety start switch device, the tractor can be started only when the main transmission lever is placed in the neutral position, which completely eliminates the unsafe hidden danger caused by starting the tractor without removing the gear.

It has a forced pressure lubrication system, and the lubrication and oil supply method of the transmission system adopts forced pressure lubrication, which forms a uniform oil surface protection layer on the friction surface with heavy load and high relative movement speed,

The gears and bearings running at high speed are better protected, the performance is more reliable, the transportation and chemical system is better, and the heat dissipation is faster.

Equipped with a differential interlocking device, when the differential coupling sleeve is separated, the speed of the two wheels will be different, so that the tractor can turn freely, and when one driving wheel slips, the differential can move the left and right halves

Axle connection, allowing the rear drive wheels to generate more traction on slippery ground to get out of trouble.

·Adopt three-point suspension, type II connecting rods. The tillage depth adjustment methods are force adjustment, position adjustment, and force-position comprehensive adjustment. The rear suspension system with fixed pull-down rods and stabilizer pins is adopted. The suspension rods have

It has a height adjustment function, and the rear suspension has a strong lifting force.

·Enlarging the heat dissipation area of the oil radiator and water tank, the function is more excellent.

Wheeled Tractors Technical Specification

Model
Part Name	TNC454-1	TNC504-1	TNC554-1	TNC604-1
mmOver size(length×width Xheight) mm	3822×1640×2450	3886×1640×2450	3986×1655×2510	3986×1655×2510
Minimum operating weight kgMin	2200	2340	2440	2440
Type Type	4X22WD
Engine Engine	4TE45	4G33T	4G33TC	4G33TC
Rated power kWRa too sd power (kW)	33.1	36.8	Country II: 40.4 Country III: 41	44.1
Rated speed r/minRated speed (x/min)	2300	2300	2300	2300
clutch clutch	Single chip, single action
GearboxShuttle-typeGearshiftF/R	Advance 8，back 4	Advance 8, back 4	Advance 8, back 2, climb the top 8, climb down 2	Advance 8, back 4
steering system type	Mechanical steering
Front wheel? Rear wheel (Front wheel / Rear wheel)	8.3-20/12.4-28	8.3-20/12.4-28	8.3-24/12.4-32	8.3-24/12.4-32
Wheelbase mm Wheelbase (mm >	2010	2073	2073	2073
The front track can be adjusted in steps nmExont (adjustable mm	1300	1300	1300	1300
Rear track stepless adjustment umEesx(&tealesaadjustment) mm	1300-1600	1300-1600	1315-1615	1315-1615
Power output shaft type	Post non independent
singlespeedpower outputspeed	540/720	540/720	540/720	540/1000
Tillage depth adjustment method	Comprehensive control of force position
Hy drauliclifting systemtype	partial sepaxated unit
suspension type	3-point linkage
Cab Anti tipping frame i cab	Safe driving room
chair	Suspension damping
Theweightbefore/after (kg)	120/180	120/180	120/180	120/180
Air brakeAir brake	Single group
